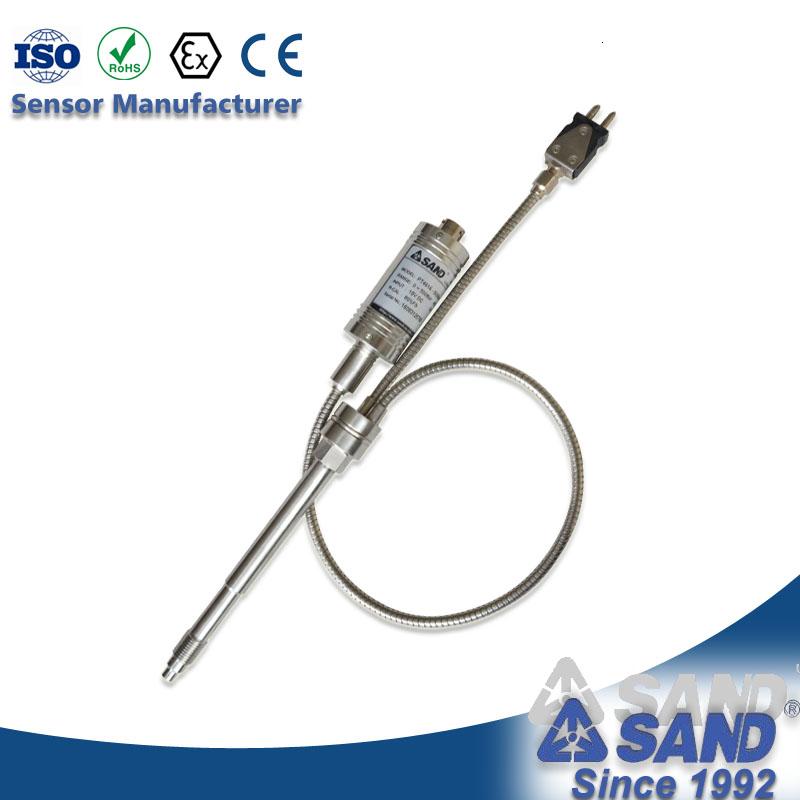

Melt pressure transducer high-precision PT4616(SAND)

  • Melt pressure transducer high-precision PT4616(SAND)
  • Melt pressure transducer high-precision PT4616(SAND)
  • Melt pressure transducer high-precision PT4616(SAND)
  • Melt pressure transducer high-precision PT4616(SAND)
  • Melt pressure transducer high-precision PT4616(SAND)
Model No.︰PT4616
Brand Name︰SAND
Country of Origin︰China
Minimum Order︰1 pc
Share on:

 Total 19 Related Items
Prev1516171819Next

Product Description

PT4xx6 series high temperature melt pressure transducer(SAND)


Introduction

SAND PT4XX6 series pressure transducers are ideal for the measurement of melt pressure in extrusion processes at temperatures up to 400 . This series are produced with special materials and alloyed elastic diaphragm together with delicate processing and debugging. The main characteristics are high accuracy and small zero and span shifts caused by changes in process temperatures.

Feature

  • Better than 0.5% accuracy
  • Standard diaphragm Inconel
  • TiN or TiAIN coating available
  • Small zero and span shifts caused by changes in process temperatures

Performance Parameters



Pressure Range

0~50 to 2000bar(0~750 to 0~30000psi)

Pressure Units

PSI, Bar, Mpa or Kg/cm2

Accuracy

±0.5% FS

Repeatability

±0.2% FS

Input excitation

10VDC ( 6 ~ 12 V DC )

Output Signal

3.33mV/V (Default), 3.0mV/V(Optional) etc.

Maximum diaphragm temperature

662 F (350 ) for rigid stem
752 F (400 ) for flexible

Zero shift due to temperature change

≤0.15 MPa/100°C

Insulation Resistance

≥500MΩ/500VDC

Maximum Overload Pressure Rating

1.5 x FSO

Process connection

1/2"-20UNF, M10x1.5, M12x1.5, M14x1.5, M18x1.5, M22x1.5 etc.

Electrical Connection

6PIN or 8PIN

Internal Shunt Calibration

80% FSO

Measurement principle

4-arm bonded foil strain gage Wheatstone bridge

Temperature Sensor (optional)

E,J,K,S type or Pt100



  Specification





Pressure transducer

Pressure transmitter

Rigid stem type

PT4516

PT4516B

Flexible stem type

PT4616

PT4616B

Pressure & temperature dual function type

PT4626

PT4626B


Order format





 ExamplePT4516-10000psi-1/2"-20-150-3.33mV/V
 Note:  Product design Model "PT4516".
            Function code "Null" stands for melt pressure transducer.
            Coating code null stands for without coating .
            Pressure range: 0 ~ 10000psi.
            Thread size : 1/2"-20 UNF .
            Rigid stem length:150mm .
            Pressure output signal: 3.33mV/V.

E:rebeccakoo90@gmail.com
Skype rebecca900523

Payment Terms︰TT,Paypal,Western Union
