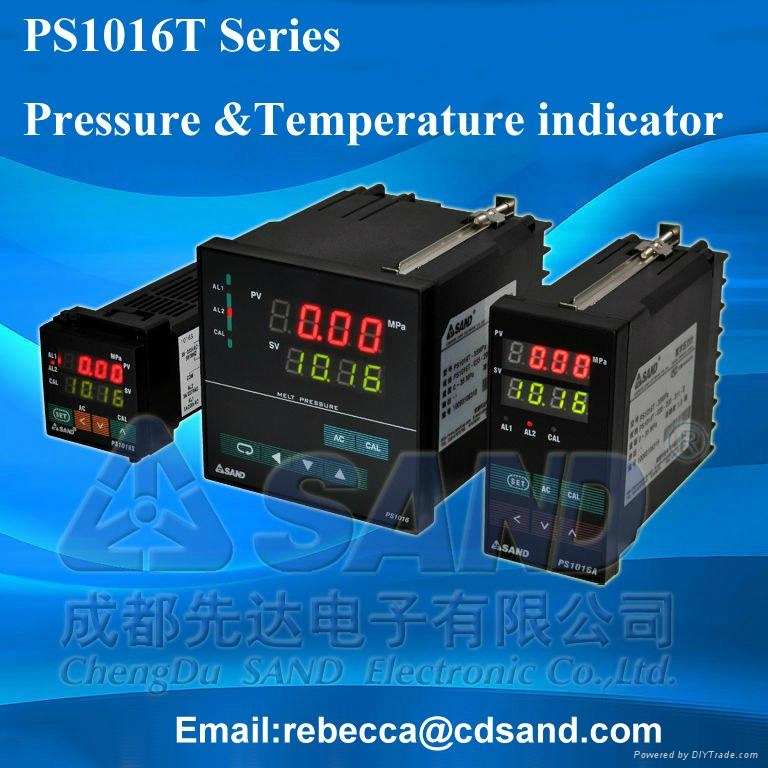

PS1016T series pressure and temperature dual measuring indicator(SAND)
Feature
1. Automatic calibration function
2. Panel error correction function;
3. Four digital displays with two layers and double colors;
4. Using a variety of alarm mode;
5. Providing single and double line output;
6. Providing variety of voltage or current linear output signal;
7. Providing RS485 computer communication interface;
8. Compatible with a variety of pressure input signal;
9. Triple anti-jamming technology;
10. More than 20000 hours trouble-free operation;
11. Providing the pressure and temperature dual measurement and dual display function, supporting the thermocouple of E, J, K type and thermal resistance of Pt100 RTD input.
Integrated Index
|
Model
|
Range
|
Power Supply
|
Output
|
Alarm
|
Input
|
Temp. config
|
Communication
|
|
PS1016T
96*96*
112mm
|
0~1500bar,
0~20000psi
|
85~265VAC
24VDC
110VAC
220VAC
240VAC
|
200:No Output
20X:One
Linear Output
201:0~5V
220:1~5V
203:0~10mA
204:0~20mA
205:4~20mA
206:0~10V
2XX:Two
Linear Output
21X:0~5V/X
22X:1~5V/X
23X:0~10mA/X
24X:0~20mA/X
25X:4~20mA/X
26X:0~10V/X
|
300:No Alarm
Relay
Alarm
310:up
311:up/low
312:up/up
313:up/up/low
314:low
SCR Alarm
320:up
321:up/low
322:up/up
323:up/up/low
324:low
Voltage Pulse Alarm
330:up
331:up/low
332:up/up
333:up/up/low
334:low
|
Null: Default 2.0mV/V
420:2.0mV/V
430:3.0mV/V
433:3.3mV/V
402:0~20mA
442:4~20mA
401:0~10V
405:0~5V
415:1~5V
|
E,J,K,S
Pt100
|
Null: No
7R:RS485
7C:CANopen
|
|

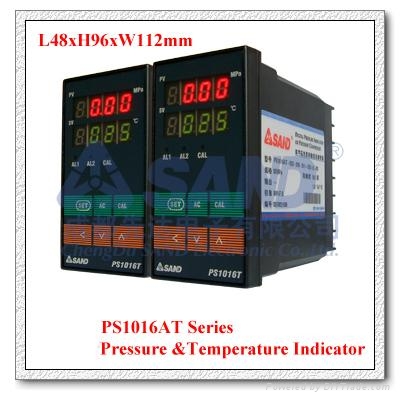

PS1016T
48*96*
112mm
|
E.J.K.S Pt100
|
NO
|
|
PS1016T
48*48*
112mm
|
E,J,K,S Pt100
|
NO
|
Order format
Example: PS1016T-035-200-311-5D-6J
Product Model "PS1016T",Intelligent pressure indicator.
Pressure Range Code "035", The pressure range is 0~35MPa
Output Signal Code "200",No linear signal output
Alarm Methods Code "311",Adopts 2-way relay top and bottom limitation alarm
Shape Code "5D",The overall dimension is 96*96mm
Temperature configuration"6J" stand for "J"type thermocouple.
Vacancies and not marked function codes are the default values.
Welcome to choose our pressure and temperature indicator,the further information can be available at our website.
Thanks for your kind attention,Have a nice day!
